Nanocrystalline Cores for Common Mode Chokes

Amorphous and nanocrystalline technologies are very important technology in modem magnetic materials, cores and inductive components. After long  term experiment and development,yongwnag technology has developed series of high quality nanocrystalline cores for common mode chokes.

Nanocrystalline cores have very high permeability over low frequency to high frequency. They are very suitable for common mode chokes used as EMC filters to compress conducted common mode noise. Compared to traditional ferrite cores, nanocrystalline cores have a lot of advantages as high inductance, good filter effective, small size and volume, lower turns of copper wire, lower power consumption and high efficiency.

Nanocrystalline cores have very high curie temperature about 560℃, much higher than traditional ferrite core about 200℃. High curie temperature make nanocrystalline core excellent thermal stability, and can continuous working at up to 120℃ environment. Nanocrystalline cores is the best choice for application of common mode choke.

非晶纳米晶技术是现代磁性材料的一项重要技术，咏旺科技通过这项技术的研发，已开发出了共模   电感用的优质纳米晶磁芯系列产品。

纳米晶磁芯具有极高的导磁率，频宽特性好，非常适用于低频至 10MHz 的传导干扰噪声滤波。相比传统铁氧体，纳米晶具备以下优点：高电感量，良好滤波特性，体积小，绕线圈数少，高效节能。

纳米晶磁芯居里温度高达 560℃，而铁氧体只有约 200℃。高的居里温度使得纳米晶磁芯具有极好的温度稳定性，可以连续工作于 120℃环境。纳米晶磁芯是共模电感的首选材质。

应用/Applications

 EMC 共模电感、滤波器/EMC common mode choke, EMI Filter

 开关电源/Switched mode power supply

 计算机及服务器电源/Computer power supply, server power supply

 通信及网络电源/Communication and network power supply

 激光及X 光电源/Laser and X-ray power supply

 逆变焊机及电镀电源/Welding equipment and Electrical plating power supply

 光伏能源系统及风力发电/Solar energy equipment and Wind power generator

 家用电器, 如空调/Household electrical appliance, like air conditioner

 不间断电源(UPS)/Uninterruptable power supply (UPS)

 变频器及伺服电机/Variable Frequency Device (VFD) and servo motor

 感应加热设备/Inducted heating equipment

 高铁电源/High-speed railway power supplies

 电动车及充电桩/Electric vehicles and charger devices

特性/Characteristics

 高导磁率- 提高电感量，减小器件体积和绕线匝数

High permeability -- increasing inductance and reducing size and winding turns

 高饱和磁感应强度- 不易饱和

High saturation flux density -- not easy to saturation

 低损耗- 提高效率，节能

Low loss -- increasing efficiency and reducing power consumption

 耐大不平衡电流 - 适用于大不平衡电流的应用

High unbalance current withstand -- suitable for high unbalance current application

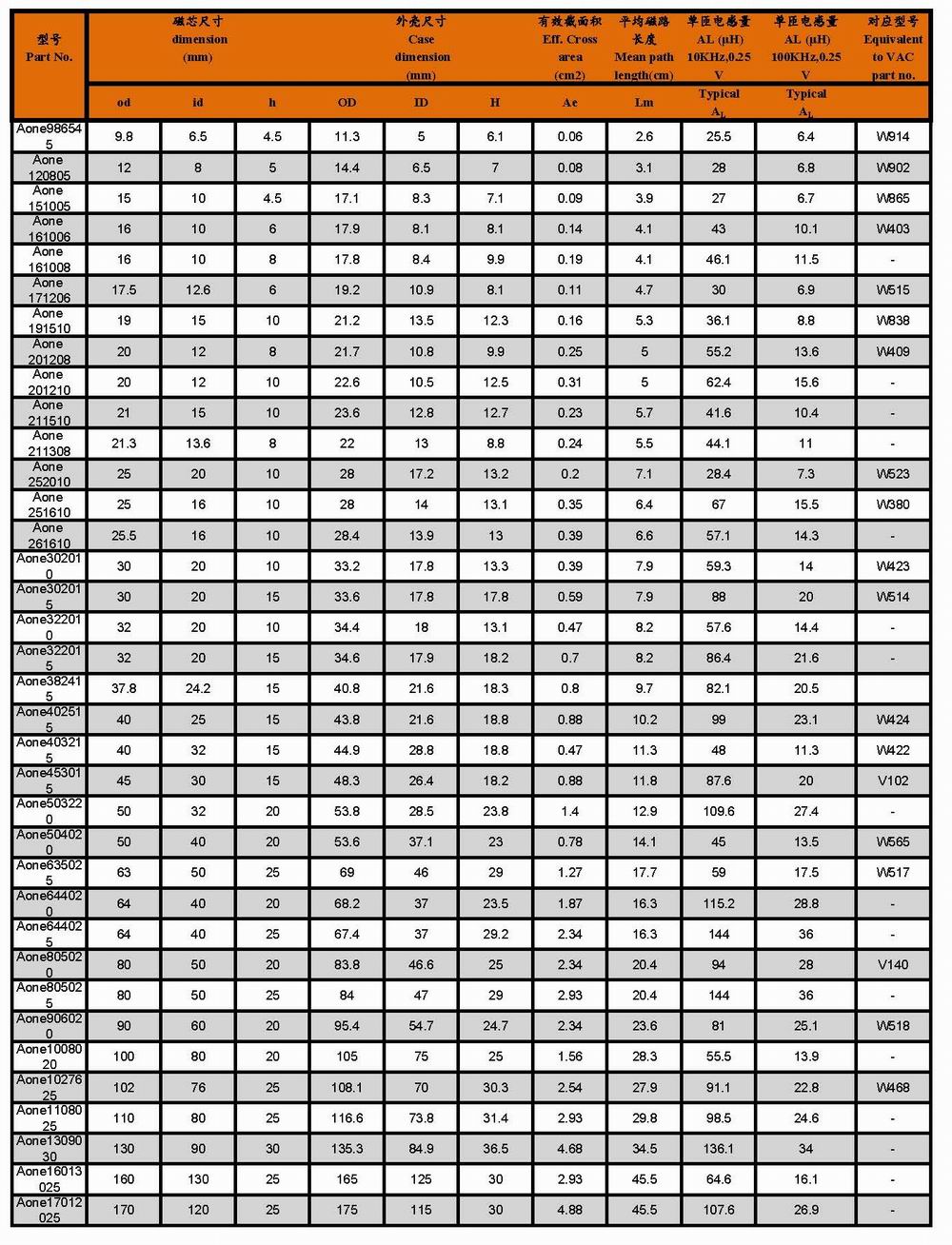

产品规格表/Specifications

EMC 共模电感用纳米晶磁芯/Nanocrystalline cores for EMC common mode chokes
